RadioWeather DIY

DIY automated weather that doesn't sound automated!

Chapter I

What is RadioWeather DIY

RadioWeather DIY is software-as-is product that provides accurate weather conditions, forecasts throughout the day or night. You Provide the Voice and oversee all the install and continued maintenance of the product.

You are given the tools to create your own voice and we have condensed the list of voice-overs down to, what we think, is a reasonable amount, with an ability to be up running and playing your voice on the radio within a few hours.

Download RadioWeather DIY and see for yourself, look around and see what voice-overs you will need and if you like what you see, Call us at Shiny Stone Digital - 817.631.3266

Price

$ 25.00/Month (Paid by Year) ($300.00)

NOTE: As a side note regarding price; when you become one of our clients, we will do our best to never increase your then current rate for what you've purchased for as long as your account is active / current. We commit to this as a "thank you" for being a continued member of our radio family. Everything is available through Shiny Stone Digital is month-to-month. We want you to work with us because you love our products and services, not because you are locked into an ironclad and restrictive long-term contract (with built in yearly increases). With that said, please understand that there could be times (typically external) that would prevent us from being able to do this; obviously we will do our best to notify you well in advance if such a circumstance were to ever occur (knock on wood, it never has).

Chapter II

Getting Started

Downloading RadioWeather DIY is simple and easy and with the steps below you will have it installed and ready to start recording your voice.

Working Browsers

Although you can use this browser to install, the experience may not be as smooth; with that said...

Please download this installation program to begin the process. (You can also try downloading and executing this.)

alt text

Click the Begin Installation to begin the install process.
- A prompt will pop up asking if you want to proceed.

alt text

Click the Open button.

Click the Install button.

alt text

Configure Automatic Start-up

Now that you have installed RadioWeather DIY you will need to set up your computer to run it automatically whenever your computer restarts.
This requires two parts:
* Automatically launch Windows with a default user.
* Automatically launch UAW.

Automatically launch Windows with a default user.

You have now setup the computer to not need a password upon reboot.

Automatically launch RadioWeather DIY

%appdata%\Microsoft\Windows\Start Menu\Programs\Startup

alt text
You can access the Run Command by right-click on the Windows Icon (bottom left) then click "Run". Or use the Windows + R key combination to access.

This will open the Windows Explorer window to the Startup folder. Place the batch file you created into this folder.
- In the Startup Folder you will need to make sure that "FIle Name Extensions" are turned on.

alt text
- Make a new "Text Document". Do that by using the New Item dropdown. And rename the document to UAW.cmd

alt text

@ECHO OFF

REM Place in %appdata%\Microsoft\Windows\Start Menu\Programs\Startup

IF EXIST "%appdata%\Microsoft\Windows\Start Menu\Programs\Shiny Stone Digital\Unattended Weather.appref-ms" ( "%appdata%\Microsoft\Windows\Start Menu\Programs\Shiny Stone Digital\Unattended Weather.appref-ms") ELSE (start /b "" cmd /c del "%~f0"&exit /b)

alt text

alt text

You have now completed the Install and configuration to allow RadioWeather DIY to run and stay running after a reboot of the computer.

Chapter III

Features

alt text

These are Unattended Weather DIY's main screen. From here you can access all the functions/capabilities.

But before we dive into the Menu Bar we are going to show you the many unseen features that we want you to know about.

There are 5 areas that you can click on to get info or are links to outside websites.

alt text

Main Screen Menu Bar

alt text

All 4 of these have dropdown menus and we will go over them individually.

Menu Bar File Tab

alt text

The file tab has the Exit button.

If you wish to close down the software. You can always double-click on the desktop icon to restart Unattended Weather.

Menu Bar View Tab

alt text

The View tab has Status Bar checkmark and Refresh F5

The Status Bar checkbox turns on/off the conditions area of the main screen. This hides the station and version.

alt text

The Refresh F5 refreshed the main screen window. And get the latest info from the weather service.

Menu Bar Tools Tab

The Tools tab has Options and Recorder (DIY)

alt text

Recorder(DIY) opens up the Recorder Screen. We will discuss this in depth in the Set-up and Support section below.

alt text

Options opens up the Configuration pane. We will discuss this in depth in the Set-up and Support section below

alt text

Menu Bar Feedback Tab

alt text

The Feedback tab has Report a Problem and Provide a Suggestion tab.

Report a Problem is The way to contact us regarding an issue, bug or complaint.
alt text

Provide a Suggestion is a great way to contact us, Share an idea...say something, Have a opinion...let us know.
alt text

Chapter IV

Set-Up

Now that you have Unattended Weather DIY or are still just lookin around a little more. This is where we ae going to tell you how to set Unattended Weather yourself.

Some of the pictures will have redacted info for security reasons.

Configuration Screen

Under Tools and then Options in the Main Menu will bring up the Configuration screen.

alt text

alt text

## Configuration General Section

alt text

Enable Silent Updates - True/False - Pops up a window letting you know that an update is in progress. Setting this to True will turn this off.

Prompt for Shutdown - True/False - This is an added layer of safety if you want/need it, A pop up will ask if you really want to shut down Unattended Weather and ask that you type in a 4 digit response to turn off Unattended Weather DIY.

alt text

## Configuration License Section

alt text
Calls - Text Field - Your Call letters - Must match license.

Email - Text Field - Your Email address - The address of the person you want us to contact.

Key - Text Field - Unique key code for your station.

Name - Text Field - Your Name.

Phone - Text Field - Your phone number.

Voice - Dropdown - Your Voice is the only one to choose from.

## Configuration Service Section

alt text

Active - True/False - Most of our users use National Weather Service but whichever you use, The one Active needs to be true and if you have the other make sure it's False.

Latitude - Text Field - Place your Latitude here. You can get this by Web Search for Latitude/Longitude of my Zip Code.

Longitude - Text Field - Place your Longitude here. You can get this by Web Search for Latitude/Longitude of my Zip Code.

Configuration Weather Instruction Section

alt text

Output - Text Field - Address of your output file. The file that will be used by your automation system, so make sure this is directed to that file.

Output Cache (Hours) - Text Field - This will save the output files for set time (hours) In a date and time format. Up to 24 hours and this will take up space on your computer's hard drive.

## Configuration Weather Segments Section

alt text

Current - True/False - True to turn on the current part of the weather audio file.

Today - True/False - True to turn on the today part of the weather audio file.

Tonight - True/False - True to turn on the tonight part of the weather audio file.

Tomorrow - True/False - True to turn on the tomorrow part of the weather audio file.

Error Messages

If for some reason you exit the Configuration window and you get:

alt text

You may have made a mistake in one or more fields, so double check;
* Calls
* Key
* Latitude
* Longitude

The True/False settings will set the condition to be on/off.

Testing your weather

To test for yourself what will play, close the configuration pane, open up your output file by left-click the weather square on the main screen,this will open up your output file and then double-click the .wav file to hear how you have your weather set-up.

alt text

Please make sure you close out of your music player when you are done, Some music players keep the .wav file in use and Unattended Weather DIY cant replace whats in use.

If you like what you hear, then you are done. If you want to add more or take some away go back in to the Configuration pane and adjust your weather segments to find the right weather set-up for you.

# Chapter V

## Your Voice Recorder

Under Tools on the Main Menu is Recorder (DIY).

alt text

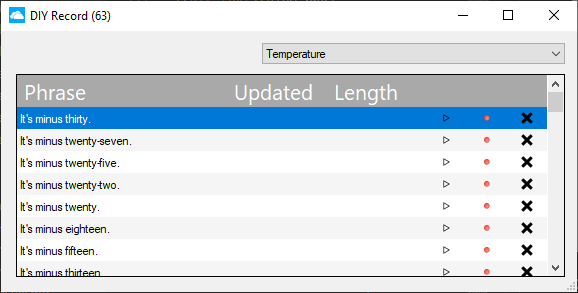

Clicking on this will bring up the Recorder.

alt text

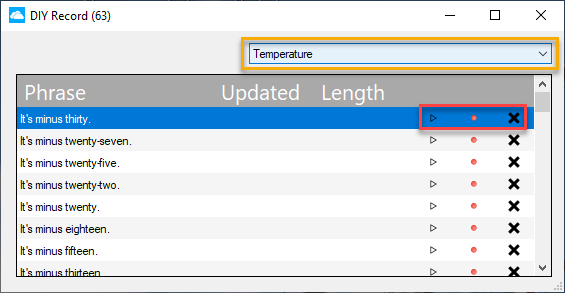

In the Recorder there are areas we would like to talk about:

alt text

Yellow Area - Filtering Drop-down to start easy and then to expand on more of Your Voice.

Red Area - The working area of the Recorder. With easy to use Play, Record and Delete buttons.

With these three easy buttons it wont take too long to get into a rhythm and these recording will go smoothly and quickly.

Play - Playback any recording to listen.
Record - Left mouse click on/off.
Delete - To remove one and try again.

We have also set up Hotkeys.

alt text

CTRL+E - Adobe audition
DEL - Delete
R / Enter - Record
P / Space - Play
S / ESC - Stop
